Standards and Certifications:

  • UL 508 (UL File No. E352868)
  • IEC 61000-3-2
  • IEC 61000-4-2-1~11

Features

  • Supports upto 48 I/Os (32 digital inputs & 16 digital outputs)
  • DST Feature Available
  • Backlit LCD Screen for display & modification of pre-selected parameters of functional blocks, viewing I/O status and programming on the device
  • PC software for programming, online & offline simulation, documentation & printing
  • Designed for use in automation for commercial & Industrial sectors
  • Modbus Communication

Programming Features:

  • 250 lines of ladder programming
  • 16 soft text messages, Time Switches, Compare Counters, Timers,
    Counters & 12 analog functions

Function Blocks:

Timers:
16 (ON Delay, Interval, Cyclic ON-OFF, OFF Delay)
Counters: 16 (Up/Down, Retentive selectable)
Time Switches: 16 (Weekly / Daily)
Compare Counters: 16
Analog Functions: 12
Soft Text Messages: 16 (Priority Driven)
Auxiliary Relays: 32
Technical Specifications Altech Smart Relay 1
I/O Extensions (Max.) 3
Utilization Category
AC-15 Rated Voltage (Ue): 120/240 V,
Rated Current (Ie): 3.0/1.5 A
DC-13 Rated Voltage (Ue): 24/125/250 V, Current (Ie): 2.0/0.22/0.1 A
Power Reserve
(For Clock Only)
150h at -10°C to +55°C
Operating Temperature -10°C to +55°C
Storage Temperature -25°C to +70°C
Humidity
(Non Condensing)
95% (Rh)
Enclosure Flame Retardant UL 94-V0
Mounting Base / DIN Rail
Degree of Protection IP 20 for Terminals, IP 40 for Enclosure

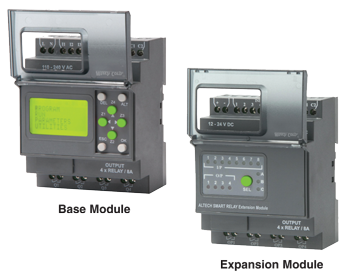

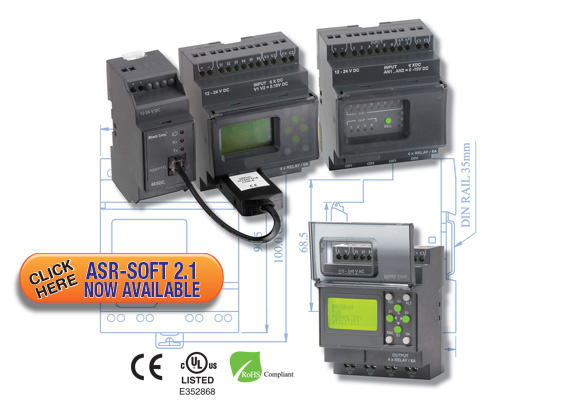

Base Module
Cat. No. ASR-B120AC ASR-B24DC
Supply Voltage
(-20% to + 10%)
110-240 VAC (50/60Hz) 12-24 VDC
Power Consumption 5W 5W
Max. Supply current 36 mA 360 mA
Digital Input 8 6
Digital Input Range (0-40VAC) OFF,(80-265VAC) ON (0-4VDC) OFF,(8-26.4VDC) ON
Analog Input N/A 2 (can be used as Digital Inputs)
Digital Relay Output 4 NO (8A@240V AC, 5A@30V DC) 4 NO (8A@240V AC, 5A@30V DC)
Analog Input N/A 0 to 10 VDC
Weight 0.51 lb. (230 g) 0.51 lb. (230 g)
Expansion Module
Cat. No. ASR-E120AC ASR-E24DC
Digital Input 8 6
Digital Input Range (0-40VAC) OFF,(80-265VAC) ON (0-4VDC) OFF,(8-26.4VDC) ON
Analog Input N/A 2 (can be used as Digital Inputs)
Digital Relay Output 4 NO (8A@240V AC, 5A@30V DC) 4 NO (8A@240V AC, 5A@30V DC)
Analog Input N/A 0 to 10 VDC
Weight 0.5 lb. (225 g) 0.5 lb. (225 g)
RS485 Communication Module
Input TTL Level Altech Smart Relay 2
Output RS-485 protocol (two wires, D+, D-)
Number of Nodes 32 standard unit loads
Isolation Voltage 2000 Vrms
Baud Rate 300, 600, 1200, 2400, 4800, 9600
Operating temperature -10°C to +55°C
Storage temperature -20°C to +70°C
LED Indicators Red LED’s for Tx & Rx. Green LED for Power indication
Weight 0.19 lb. (84 g)
Cat. No. ASR-C485-120AC ASR-C485-24DC
Supply Voltage 110-240 VAC 12-24 VDC
Weight 0.18 lb. (80 g) 0.19 lb. (84 g)
Accessories Memory Card Memory Card Memory Card
Cat. No. ASR-MC ASR-USB ASR-RS232
Memory Card USB Cable Serial RS232 Cable
Weight 0.18 lb. (80 g) 0.22 lb. (100 g) 0.24 lb. (110 g)
Technical Specifications

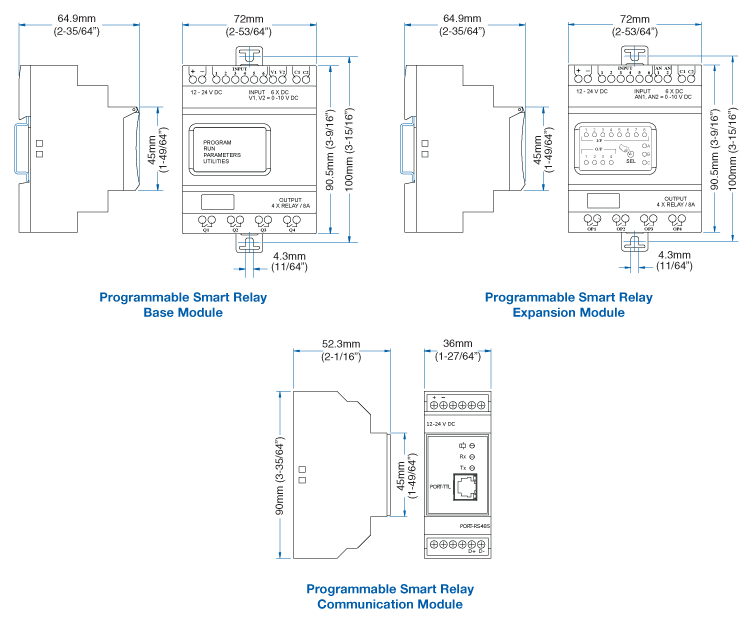

Dimensions

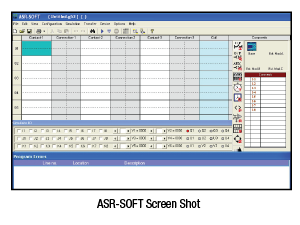

ASR-Soft softwareASR-Soft screen

PDF file
Click here to download ASR-Soft (Ver 2.1)
and complete Instructional Manual
(release 5.6.20)
(DATE CODE including 4815 and greater)

Software Instructions

PDF file ASR Instruction Manual

PDF file Programming with ASR-Soft (including sample programs)

PDF file Installation Guide Windows XP

PDF file Installation Guide Windows Vista 7ASR-Soft screen

SYSTEM REQUIREMENTS:

    Windows 2000, Windows XP, Windows Vista,
    or Windows 7
    Pentium II PC (200 MHz or higher)
    256MB RAM
    80MB free hard drive space
    Screen Resolution 800 x 600 or better


Technical Information

PDF fileSpecification Pages

PDF fileWiring Diagram and Dimensions

PDF fileAltech Smart Relay Display Functions and Parameters

Click here to download Support file

TeamViewer

After download install on your computer.

For assistance Email Markus@altechcorp.com


For more information contact Altech at:
908-806-9400 • 908-806-9490 (FAX) • info@altechcorp.com • 35 Royal Road, Flemington, NJ 08822

Different Supply Voltages
Digital, Analog Inputs

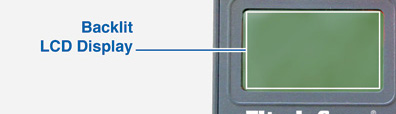

Backlit LCD Display
Multi-Use Interface
Software
Extension and Communication Module

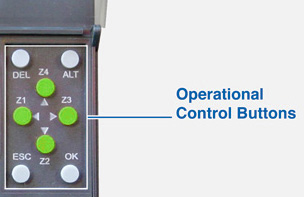

Keypad with Control Buttons
Digital, Analog Outputs
