Liquid Tight Strain Reliefs





Our 52-page catalog introduces Altech’s full line Liquid Tight Strain Reliefs (cord grips or cable glands) which are used to seal cable entries, keep contaminants from entering enclosures, provide strain relief and thus reduce stress on components and termination points inside enclosures. Functions include Straight-Through, Increased Strain Relief, Bend Protection, Pull/Bend Protection, Multi-conductor, Flat Cable and EMI/RFI. They can be used with almost any type of cable, cord or conductor - solid, stranded, flat, shielded, high temperature, etc.




Seal out moisture and contaminants that can damage equipment and devices and provide protection against environmental influences. Ensure that cables stay securely in place, reduce stress on termination points and more. Altech "Cord Grips" meet all national and international standards for performance and safety and are offered in combinations of different body materials and sealing inserts to meet almost any application requirement. Choose from our Standard or Industrial Series.

Cable Gland, Polyamide

Material:

  • Polyamide 6
  • Seal: Neoprene

Technical properties:

  • Maximum strain relief through clamping range
  • IP68 achieved without seal rings (PG and metric only)
  • Trapezoidal thread with high torque guarantees tight and permanent fit of the dome nut
  • Gas- and watertight

Applications:

  • Machine and devices


Cable Gland, Nickel-Plated Brass

Material:

  • Body: Nickel-plated brass
  • Seal: Neoprene
  • Clamping insert: Polyamide 6
  • Sealing ring for outer thread: Nitril

Technical properties:

  • Seal rings included for PG and Metric sizes
  • Maximum strain relief through clamp range
  • Gas-- and watertight

Applications:

  • Machine and devices

Cable Gland, Nickel-Plated Brass

Material:

  • Body: Nickel-plated brass
  • Seal: Neoprene
  • Clamping insert: Polyamide 6
  • Sealing ring for outer thread: Nitril

Technical properties:

  • Seal rings included for PG and Metric sizes
  • Maximum strain relief through clamp range
  • Gas-- and watertight

Applications:

  • Machine and devices

Flat Head and Multi-Conductor Sealing

Material:

  • EPDM, black

Technical properties:

  • For sealing cable gland entries when cables are not being installed.
  • Insert into cable gland and tighten gland to seal.

Applications:

  • Machine and devices

Cable Gland Industrial, Polyamide

Material:

  • Body: Polyamide PA 6
    25 % Glass-fiber Reinforced
  • Seal: Tefabloc ECA clamping ring: Polycarbonate

Characteristics:

  • PG/metric thread
  • ECA clamping ring
  • Extended thread available

Technical properties:

  • Strain relief through clamping ring
  • Gas- and watertight
  • Completely twist protected
  • Combinable with various sealing inserts

Applications:

  • Machines and devices
  • Measuring and control engineering
  • Plant installations

Cable Gland Industrial, Flat Seal, Polyamide

Material:

  • Body: Polyamide PA 6
    25 % Glass-fiber Reinforced
  • Seal: Tefabloc

Characteristics:

  • PG/metric thread
  • Seal for flat cable round, angular, oval

Technical properties:

  • Gas- and watertight
  • Completely twist protected
  • Combinable with various sealing inserts

Applications:

  • Machines and devices
  • Measuring and control engineerin
  • Plant installations
Cable Gland Industrial, Multi-conductor Seal, Polyamide

Material:

  • Body: Polyamide PA 6
    25 % Glass-fiber Reinforced
  • Seal: Tefabloc

Characteristics:

  • PG/metric thread
  • Multi-holed seal inserts

Technical properties:

  • Gas- and watertight
  • Completely twist protected
  • Combinable with various sealing inserts

Applications:

  • Machines and devices
  • Measuring and control engineering
  • Plant installations

Cable Gland Industrial, Multi-conductor Seal, Polyamide, Metric Thread

Material:

  • Body: polyamide PA 6
    25% Glass-fiber Reinforced
  • Seal: Tefabloc

Characteristics:

  • Metric Thread
  • Multi-holed seal inserts

Technical properties:

  • Gas- and watertight
  • Completely twist protected
  • Combinable with various sealing inserts

Applications:

  • Machines and devices
  • Measuring and control engineering
  • Plant installations

Cable Gland Industrial, PVDF

Material:

  • Body: Polyvinylidefluoride
  • Seal: Santoprene
  • ECA clamping ring: Polycarbonate

Characteristics:

  • Metric thread
  • ECA clamping ring
  • Short and long seal

Technical properties:

  • No halogen
  • Strain relief through clamping ring
  • Gas- and watertight
  • Completely twist protected
  • Combinable with various sealing inserts
  • Chemical resistant

Applications:

  • Machines and devices
  • Measuring and control engineering
  • Plant installations
  • Food sector
Cable Gland Industrial, Nickel-Plated Brass

Material:

  • Body: Nickel-plated brass
  • Seal: Tefabloc or Santoprene/Nitril
  • ECA clamping ring: Polycarbonate
  • Sealing ring for outer thread: Nitril

Characteristics:

  • PG/Metric thread
  • Extended Thread available

Technical properties:

  • Strain relief through clamping ring
  • Gas- and watertight
  • Completely twist protected
  • Combinable with various sealing inserts

Applications:

  • Machines and devices
  • Measuring and control engineering
  • Plant installations
Cable Gland Industrial, Flat Seal, Nickel-Plated Brass

Material:

  • Body: Nickel-Plated Brass
  • Seal: Tefabloc
  • Sealing ring for outer thread: Nitril

Characteristics:

  • PG/metric thread
  • Seal for flat cable round, angular, oval
  • Extended thread available

Technical properties:

  • Gas- and watertight
  • Completely twist protected
  • Combinable with various sealing inserts

Applications:

  • Machines and devices
  • Measuring and control engineering
  • Plant installations

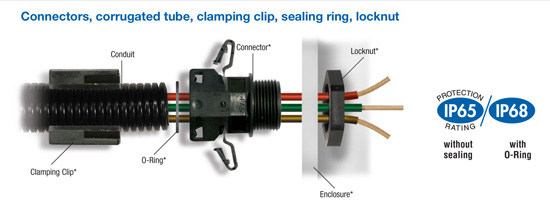

Corrugated Tubes
& Tube Connectors

Click here online catalog.

Protect your cables with corrugated tubes. Made from flame retardant Polyamide 6, these tubes will protect cables from impact and abrasion. They are highly flexible and have a high fatigue life, making them ideal for any installation. 15 sizes are available in standard tube or with a lateral slit. Add straight or 90° connectors with seals to complete the installation.


Material: Polyamide 6 Accessories:
Flame retardant according to DIN 75200 and UL Connectors
No halogen Seal Rings, O-Rings
Durable Mounting Clips
Temperature Range: -40 to 120°C, short term 150°C
Inner Dimensions: 2.8mm up to 47.7mm

POLYFLEX®, PA 6 normal profile conduit

Material:

  • Polyamide 6

Upper temperature range:

  • Short-term: 150°C, (302°F)

Characteristics:

  • Parallel corrugated
  • Gray available

Technical properties:

  • Flame retardant according to FMVSS302 and UL94
  • Halogen free
  • Durable
  • UV resistant according to DIN EN ISO 8580

Applications:

  • Engine compartment, car body and interior, machines, instruments, devices, ship and train building, switch cabinet and movable machine parts.
Conduit Gland SEM-Fast Straight, quick-mounting system for Polyflex PA 6 conduit

Material:

  • Polyamide 66

Technical properties:

  • Easy and tight mounting
  • Special click- in system
  • Gray available
  • Conduit can be rotated within the mounting gland
  • Halogen free

Applications:

  • All fields using conduit

Mounting instructions:

  • Insert the conduit with a short twist all the way into the end of the SEM-Fast conduit gland.
Conduit Gland SEM-Fast angled 90°, quick-mounting system for Polyflex PA 6 conduit

Material:

  • Polyamide 66

Technical properties:

  • Easy and tight mounting
  • Special click- in system
  • Gray available
  • Conduit can be rotated within the mounting gland
  • Halogen free

Applications:

  • All fields using conduit

Mounting instructions:

  • Insert the conduit with a short twist all the way into the end of the SEM-Fast conduit gland.
O-Ring for Corrugated Tubes and Clamping Clips

Material:

  • Perbunan

Characteristic feature:

  • Shore: 70 ± 5

Feature:

  • The O-ring must be mounted into the first groove of the conduit
  • The conduit, with its pre-mounted sealing ring, must be inserted into the SEM-Fast gland and simply twisted into the end.
Clamping clip for conduit tubes

Material:

  • Polyamide

Color:

  • Black

For more information contact Altech at:
908-806-9400 • 908-806-9490 (FAX) • info@altechcorp.com • 35 Royal Road, Flemington, NJ 08822
