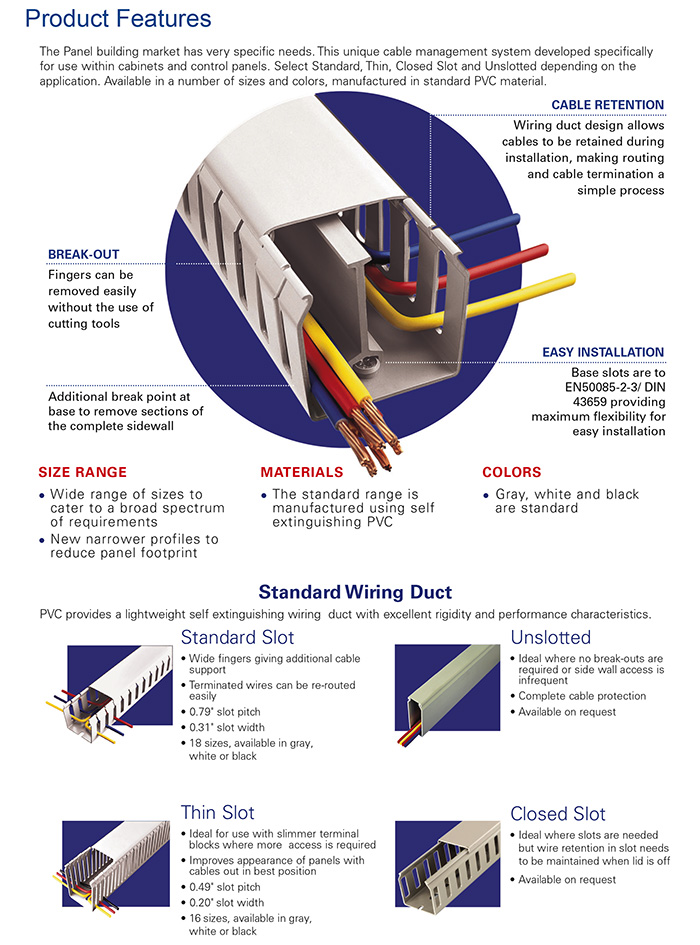

Product Features
The Panel building market has very specific needs. This unique cable management system developed specifically for use within cabinets and control panels. Select Standard, Thin, Closed Slot and Unslotted depending on the application. Available in a number of sizes and colors, manufactured in standard PVC material.
Cable Retention
Wiring duct design allows cables to be retained during installation, making routing and cable termination a simple process
Break-Out
Fingers can be removed easily without the use of cutting tools. Now featuring a new sidewall breakout option as well.
Easy INSTALLATION
Base slots are to EN50085-2-3 / DIN 43659, providing maximum flexibility for easy installation
Size Range
- Wide range of sizes to cater to a broad spectrum of requirements
- New narrower profiles to reduce panel footprint
Materials
- The standard range is manufactured using self extinguishing PVC
Colors
- Gray, white and black are standard

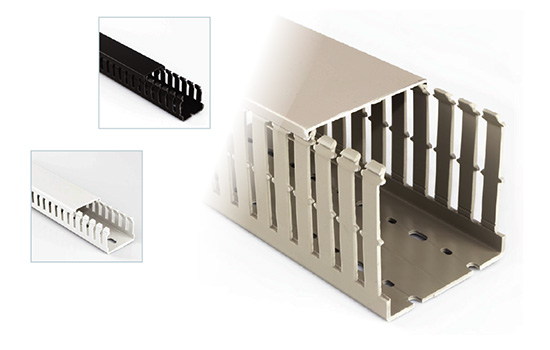

Standard Slot
- Wide fingers giving additional cable support
- Terminated wires can be re-routed easily
- 0.79" slot pitch
- 0.31" slot width
- 18 sizes, available in gray, white, or black
- UL, CSA and Lloyds Register approved
Thin Slot
- Ideal for use with slimmer terminal blocks where more access is required
- Improves appearance of panels with cables out in best position
- 0.49" slot pitch
- 0.20" slot width
- 16 sizes in a choice of gray, white or black
- UL, CSA and Lloyds Register approved
