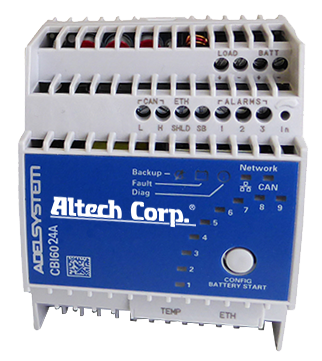

CBI6024A DC UPS “All-In-One”


Altech Request for Quote

Technical information

Catalog Number:

Link for Manual

Material Download:

  • Product Photo JPEG (coming soon)
  • Product Photo TIF (coming soon)
  • Drawing – DWG format (coming soon)
  • Drawing – DXF format (coming soon)
  • Drawing – PDF format (coming soon)
  • Drawing Top View – DWG format (coming soon)
  • Drawing Top View – DXF format (coming soon)
  • 3D CAD-Drawing – STEP format (coming soon)

NOTE: To view specific files you will need applications such as CADviewer and Acrobat.


  • Input: Single-phase 115 – 230 - 277 Vac
  • Output Selectable Load:24Vdc 2.5A
  • Output Battery charging:24 Vdc 2.5A
  • Suited for the following battery types: Open Lead
  • Acid, Sealed Lead Acid, lead Gel, Ni-Cd, Li-Ion
  • Automatic diagnostic of battery status, Battery Life
  • Test function (internal Battery Impedance)
  • Charging curve IUoU, constant voltage and current
  • Four charging levels: Boost, Bulk, Trickle, Recovery
  • Protected against short circuit and inverted polarity
  • Signal output: for battery Fault, Mains or Back-UP
  • Ethernet: SNMP V3, Modbus TCP/IP, HTTPS
  • DIN rail and Wall mount
