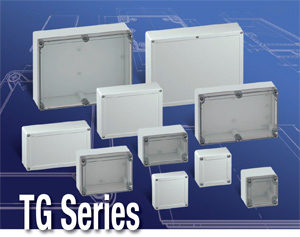

 TG Series

Featuring an attractive, high-gloss finish, the TG enclosure series is manufactured from high-quality plastics, with a choice of ABS or Polycarbonate for unsurpassed industrial quality. These high quality materials are impact and flame resistant as well as being halogen free. Rated to protection class IP 67, they are not only dustproof but also reliably protect installed electrical or electronic equipment against ingress of water during short-term submersion. The TG series therefore satisfies the most demanding applications and provides sure protection in harsh industrial environments even for highly sensitive electronics.

  • 16 sizes available
  • IP67 (NEMA TYPE 4X)
  • ABS or Polycarbonate
  • Gray or tinted transparent covers
  • Smooth Sidewalls
  • Stainless Steel cover screws
    • (choice of standard screws or 1/4 turn quick release screws)

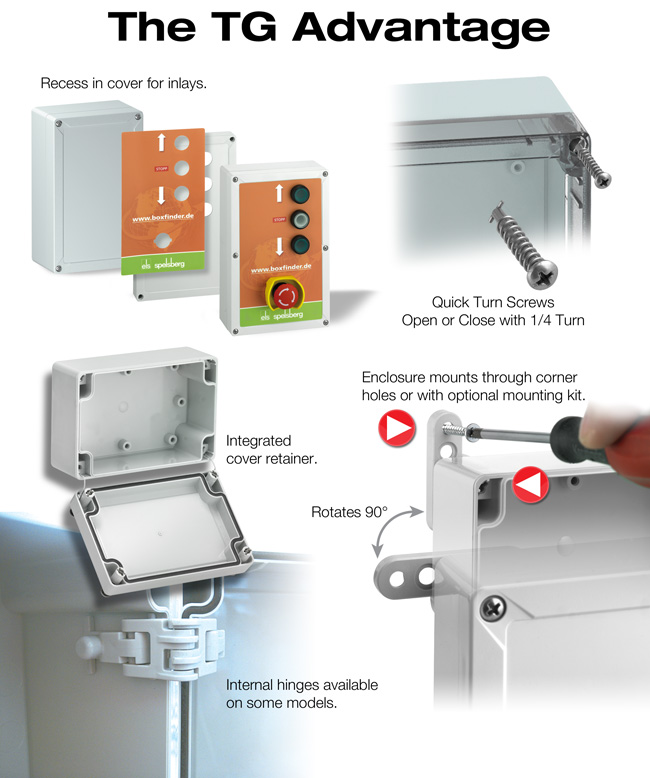

  • Integral cover retainers
  • Integral mounting studs in base
  • Recessed cover for label inlays or membrane keypads
  • Flame resistant and halogen free

TG Series Preview Video

Drawing and Data Files (If files do not automatically open, save to disk and than open.)
TG88-6 – ABS and Polycarbonate – 84 x 82 x 55 mm (3.31 x 3.23 x 2.17 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG88-9 – ABS and Polycarbonate – 84 x 82 x 85 mm (3.31 x 3.23 x 3.35 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG1208-6 – ABS and Polycarbonate – 122 x 82 x 55 mm (4.80 x 3.23 x 2.17 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG1208-9 – ABS and Polycarbonate – 122 x 82 x 85 mm (4.80 x 3.23 x 3.35 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG1212-6 – – ABS and Polycarbonate – 124 x 122 x 55 mm (4.88 x 4.80 x 2.17 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG1212-9 – ABS and Polycarbonate – 124 x 122 x 85 mm (4.88 x 4.80 x 3.35in.)
3D STEP DWG PDF 3D PDF Specification pages
TG1608-6 – ABS and Polycarbonate – 162 x 82 x 55 mm (6.38 x 3.23 x 2.17 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG1608-9 – ABS and Polycarbonate – 162 x 82 x 85mm (6.38 x 3.23 x 3.35 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG1612-9 – ABS and Polycarbonate – 162 x 122 x 90 mm (6.38 x 4.80 x 3.54 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG2012-8 – ABS and Polycarbonate – 202 x 122 x 75 mm (7.95 x 4.80 x 2.95 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG2012-9 – ABS and Polycarbonate – 202 x 122 x 90 mm (7.95 x 4.80 x 3.54 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG2015-9 – ABS and Polycarbonate – 202 x 152 x 90 mm (7.95 x 5.98 x 3.54 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG2516-9 – ABS and Polycarbonate – 252 x 162 x 90 mm (9.92 x 6.38 x 3.54 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG2516-12 – ABS and Polycarbonate – 252 x 162 x 120 mm (9.92 x 6.38 x 4.72 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG3023-9 – ABS and Polycarbonate – 302 x 232 x 90 mm (11.89 x 9.13 x 3.54 in.)
3D STEP DWG PDF 3D PDF Specification pages
TG3023-11 – ABS and Polycarbonate – 302 x 232 x 110 mm (11.89 x 9.13 x 4.33 in.)
3D STEP DWG PDF 3D PDF Specification pages
