Tower Lights
Altech Tower Lights

Features

  • Sleek & Stackable Design
  • SMD LED technology
  • Uniform & bright illumination
  • Continuous, Flashing and Rotary Integrated LED Light Modules available
  • Flexibility to upgrade from Single LED Unit to multiple LED Units
  • IP65 protection | Wide voltage range from 24V AC/DC to 240V AC
  • Optional feature of Buzzer with dual sound mode - continuous & intermittent with 80 DB output

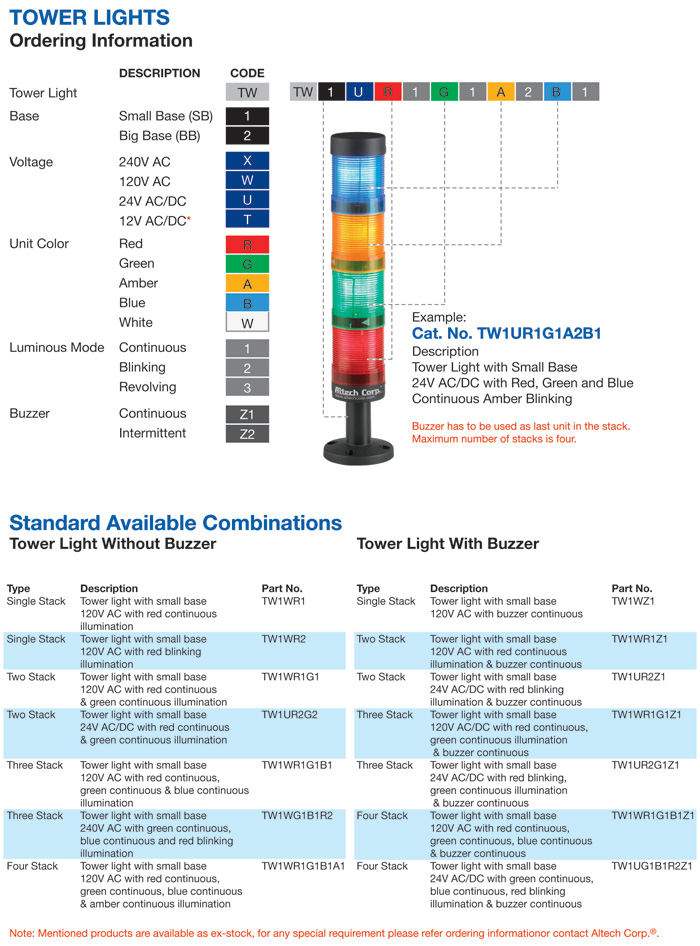

Click here FOR online catalog.

Click here to download The Tower Light Creator.

Tower Light Builder

Altech Tower Lights



Tower Light Video

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

Technical Information
Outer Diameter
Degree of Protection
LED Type
Lens Color
Luminous Mode
Buzzer Color
Buzzer Sound Level
Sounding Mode
Voltage Range
Limit of Operating Voltage
Operating Temperature
Surge Test
HV Test for 60 Seconds
Current Rating
Ø50mm
IP65 & UL (1 | 2 | 3 | 3R | 4 | 4X | 12 | 13)
SMD
Red / Green / Amber / Blue / White
Continuous, Blinking & Revolving
Black
80dB ± 5dB
Continuous & Intermittent
24V AC/DC, 120V AC, 240V AC
±10% of rated voltage
-30°C to 60°C
2 KV
1.5 KV
20-40mA for 24V AC/DC
10-20mA for 120V AC & 240V AC

Altech Tower Lights


For more information contact Altech at:
908-806-9400 • 908-806-9490 (FAX) • info@altechcorp.com • 35 Royal Road, Flemington, NJ 08822
