MRF102 Two Channel
Electronic Circuit Breaker

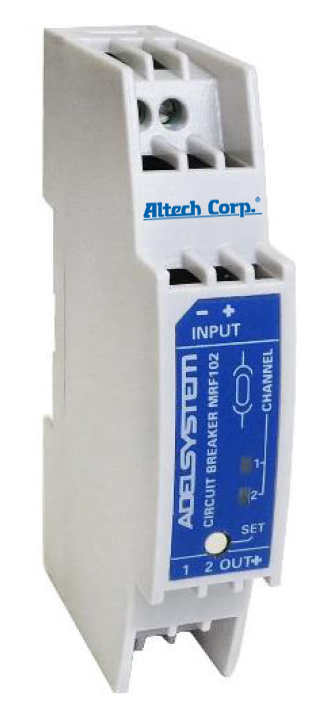

PHOTO MAY NOT BE EXACT
|
Technical information
Catalog Number:
Link for Manual
Material Download:
- Product Photo JPEG (coming soon)
- Product Photo TIF (coming soon)
- Drawing – DWG format (coming soon)
- Drawing – DXF format (coming soon)
- Drawing – PDF format (coming soon)
- Drawing Top View – DWG format (coming soon)
- Drawing Top View – DXF format (coming soon)
- 3D CAD-Drawing – STEP format (coming soon)
NOTE: To view specific files you will need applications such as CADviewer and Acrobat. |
Features:
- Warning when the current exceeds 80%
- 2 Channels with adjustable current range 1A...10A
- Sequential output switch startup. Reduced Inrush Current
- Power Boost 150%
- Two output switchable in Parallel (max 15A)
- Power limitation of the output to 100 VA, in according to NEC Class 2
- Monitoring the trigger shutdown output for maximum current or minimum voltage on the channel
- Alarm Output Open Collector
- ADELBus I/O for driver, monitoring and configuration
- DIN Rail and Wall Mount
|
 |
 |
|
