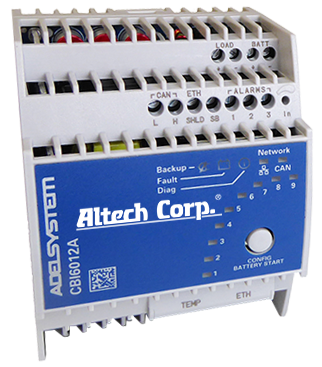

PHOTO MAY NOT BE EXACT

Technical information

Catalog Number:

• CBI6012A Specification sheet

Link for Manual

Material Download:

• Product Photo JPEG (coming soon)
• Product Photo TIF (coming soon)
• Drawing – DWG format (coming soon)
• Drawing – DXF format (coming soon)
• Drawing – PDF format (coming soon)
• Drawing Top View – DWG format (coming soon)
• Drawing Top View – DXF format (coming soon)
• 3D CAD-Drawing – STEP format (coming soon)

NOTE: To view specific files you will need applications such as CADviewer and Acrobat.

Features:

• Input: Single-phase 115 – 230 - 277 Vac
• Output Selectable Load:12Vdc 5A
• Output Battery charging:12 Vdc 5A
• Suited for the following battery types: Open Lead
• Acid, Sealed Lead Acid, lead Gel, Ni-Cd, Li-Ion
• Automatic diagnostic of battery status, Battery Life
• Test function (internal Battery Impedance)
• Charging curve IUoU, constant voltage and current
• Four charging levels: Boost, Bulk, Trickle, Recovery
• Protected against short circuit and inverted polarity
• Signal output: for battery Fault, Mains or Back-UP
• Ethernet: SNMP V3, Modbus TCP/IP, HTTPS
• DIN rail and Wall mount
