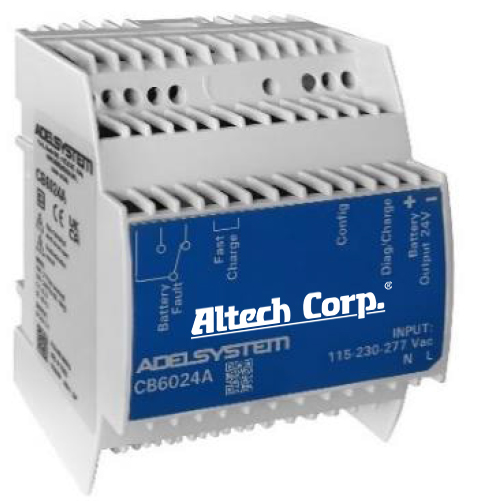

CB6024A Battery Charger


Altech Request for Quote

Technical information

Catalog Number:

Link for Manual

Material Download:

  • Product Photo JPEG (coming soon)
  • Product Photo TIF (coming soon)
  • Drawing – DWG format (coming soon)
  • Drawing – DXF format (coming soon)
  • Drawing – PDF format (coming soon)
  • Drawing Top View – DWG format (coming soon)
  • Drawing Top View – DXF format (coming soon)
  • 3D CAD-Drawing – STEP format (coming soon)

NOTE: To view specific files you will need applications such as CADviewer and Acrobat.


  • Input: Single-phase 100 – 240 - 277 Vac
  • Output: 24 Vdc 3A (5A max)
  • Power Supply Function
  • Suited for the following battery types: Open Lead Acid, Sealed
  • Lead Acid, Lead Gel, Ni-Cd
  • Battery Care: automatic diagnosis and battery status
  • Charging curve IUoU: constant current and constant voltage
  • High efficiency with quasi-resonant switching technology
  • Charging type: Boost, Absorption, Float, Recovery.
  • Protected against short circuit, inverted polarity, over Load.
  • Signal output (Free Switch Contact): Fault battery state,
  • Mains/Back-Up.
  • Protection degree IP20
  • DIN rail or Wall Mount
