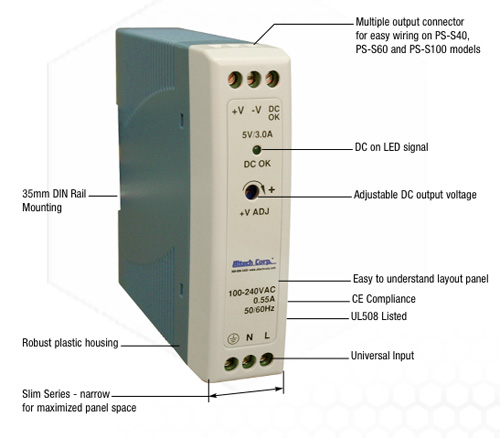

Slimline Single Phase Power Supply

ALTECH’s slim type DIN rail switching power supply, PS-S Series designed for the fast growing demand of
low wattage DIN rail applications. These 10W to 100W models are enclosed with fully isolated plastic case
to prevent users from hazardous shock. The design complies with the slim trend that the precious space on
the industrial rail can be saved effectively. Featuring up to 84% of efficiency, this series is cooled by only free
air convection up to 70°C that significantly increase the reliability and lifetime of the power supply. Another
important feature of PS-S Series is its low power consumption (<0.75W). This unique characteristic can
significantly expand the application of PS-S series beyond just heavy industrial field, but can also be implied
to datacom or IT applications that require green power to save the energy and to obey the anticipated
government laws in the near future!

Short circuit protection, overload protection, over voltage protection, and the DC OK signal for monitoring the
status of power supply are standard functions for the PS-S Series. Typical applications includes factory automation,
process control, electro-mechanical industry, datacom and IT.

  • Input voltage range: 85-264V AC; 120-370V DC
  • AC inrush current (max): Cold start: 20A at 115V AC,; 40A at 230V DC
  • DC adjustment range: ±10% rated output voltage
  • Overload protection: 105%-160% constant current limiting (auto- recovery)
  • Over-voltage protection: 115%-135% rated output voltage
  • Setup, rise, time (max):
    500ms, 30ms/230V AC
    1000ms, 30ms/115V AC, at full load
  • Withstand voltage: I/P-O/P: 3KV AC, I/P-FG:1.5KV AC, O/P-FG:0.5KV AC
  • Working temperature: -20 to +70°C (-4° to +158°F), refer to output derating curve
  • Safety standards: UL508, EN60950-1
  • EMC standards: EN55022 class B
    EN61000-4-2,3,4,5,6,8,11
    ENV50204; EN55024; EN61000-6-1; EN61204-3;
    Light Industry Level criteria A
  • Military Standard MIL-HDBK-217F

Features:

  • Universal AC input/Full range
  • Protections: Short circuit / Overload / Overvoltage
  • Cooling by free air convection
  • DIN rail mountable
  • NEC class 2 / LPS compliant (12V,24V,48V only)
  • LED indicator for power on
  • DC OK relay contact
  • No load power consumption<0.75W
  • 100% full load burn-in test
  • 3 year warranty

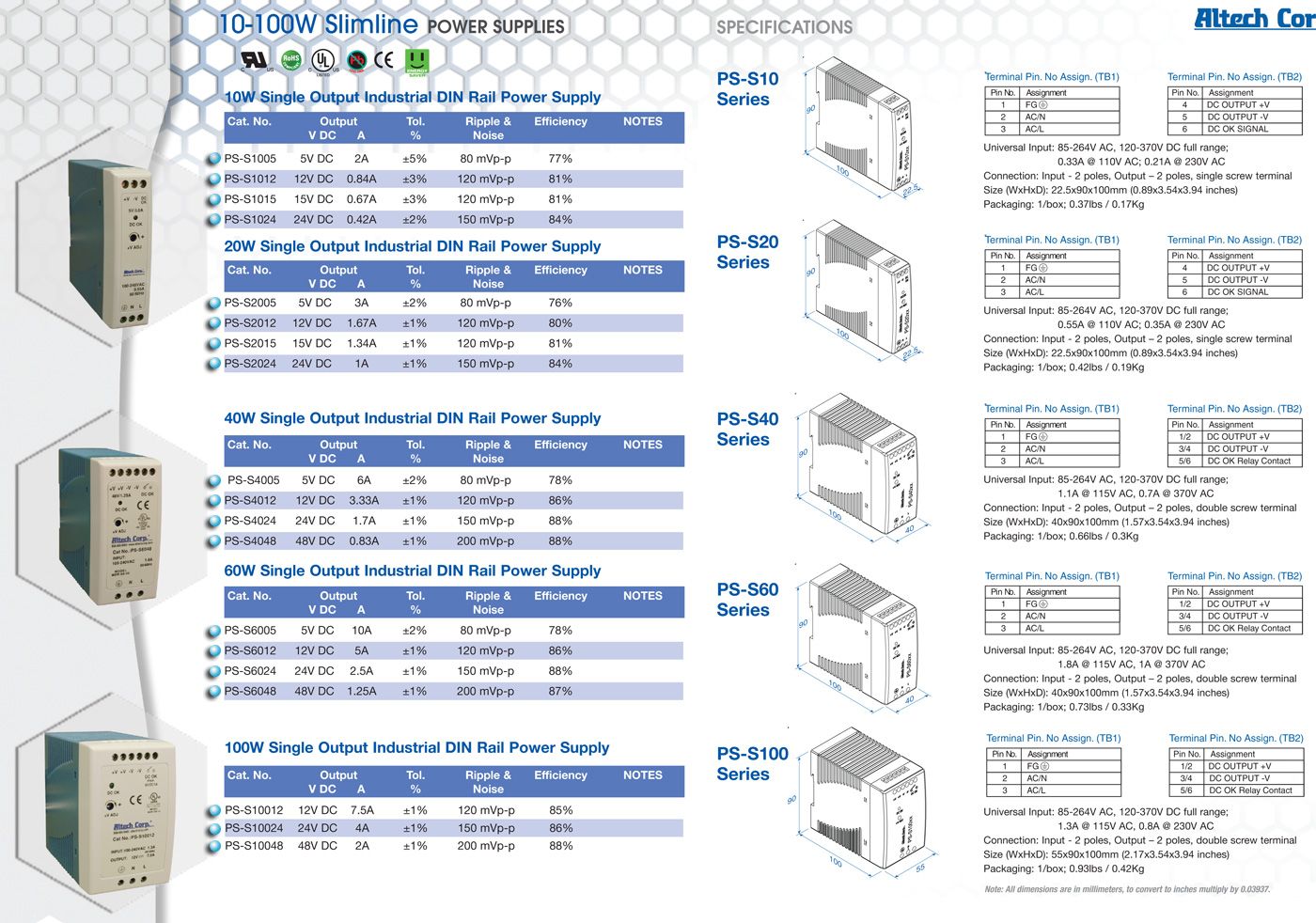

Power Supplies PRODUCT SERIES selection chart
make a choice below


Power Supply Selection Guide
