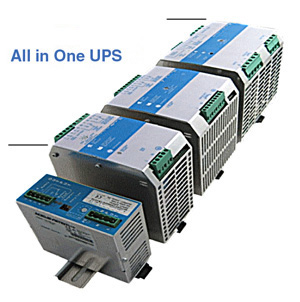

CBI All In One UPS Power Solutions

CBI All In One UPS Power Solutions combine the requirements for several applications in just one device which can be used as power supply unit, battery charger, battery care module or backup module. The available power is automatically distributed among load and battery, while supplying power to the load always is the first priority. The maximum available current of the load output is two times the value of the device’s rated current.


If the device is disconnected from the main power source, the battery will supply the load until the battery voltage reaches 1.5 V per cell. This prevents the battery from deep discharge. CBI devices provide microprocessor controlled battery charging. Using algorithms, the battery’s condition will be detected and based on that, an appropriate charging mode is chosen. The real-time diagnostics system will continuously monitor the charging progress and indicate possibly occurring faults such as elements in short circuit, accidental reverse polarity connection or disconnection of the battery by the battery fault LED and a flashing code of the diagnosis LED.


CBI All In One UPS Power Solutions are suitable for open/sealed lead acid-, lead gel- and optionally Ni-Cd batteries.
By using the battery-select-jumper, it is possible to set predefined charging curves for those battery types.
The available charging options are recovery-, boost- and trickle charge.All CB devices are built in a rugged metal case
with a DIN rail mounting bracket.

Features:

  • Power supply, battery charger, battery care module and backup module in one device
  • Three charging modes
  • Compact, rugged metal case
  • Available in 12VDC, 24VDC and 48VDC
  • Suitable for most common battery types
  • Adjustable charging current
  • Easy battery diagnosis and fault identification either by LED or external devices connected to fault
  • Status contacts
  • High efficiency up to 91% through switching technology
  • Several output protection features such as short circuit, overload, deep battery discharge etc.
  • DIN rail mounting
  • Small size
  • 3 year warranty
CBI All In One UPS Power Solutions 12V
Nominal Input Voltage 115-230-277VAC
Output Voltage 12VDC
Output Current 3, 6, 10, 35A
Adjustable Charging Current 20%-100% of Output Current
Working temperature: -25°C to 70°C
EMC standards: IEC/EN 60335-2-29 Battery chargers; EN60950 / UL1950 Electrical safety; EN54-4 Fire Detection and fire alarm systems; 89/336/EEC EMC Directive; 2006/95/EC (Low Voltage); DIN41773 (Charging cycle); Emission : IEC 61000-6-4; Immunity: IEC 61000-6-2. CE



CBI All In One UPS Power Solutions 24V
Nominal Input Voltage 115-230-277VAC
Output Voltage 24VDC
Output Current 3, 5, 10, 20A
Adjustable Charging Current 20%-100% of Output Current
Working temperature: -25°C to 70°C
EMC standards: IEC/EN 60335-2-29 Battery chargers; EN60950 / UL1950 Electrical safety; EN54-4 Fire Detection and fire alarm systems; 89/336/EEC EMC Directive; 2006/95/EC (Low Voltage); DIN41773 (Charging cycle); Emission : IEC 61000-6-4; Immunity: IEC 61000-6-2. CE



CBI All In One UPS Power Solutions 48V
Nominal Input Voltage 115-230-277VAC
Output Voltage 48VDC
Output Current 5, 10A
Adjustable Charging Current 20%-100% of Output Current
Working temperature: -25°C to 70°C
EMC standards: IEC/EN 60335-2-29 Battery chargers; EN60950 / UL1950 Electrical safety; EN54-4 Fire Detection and fire alarm systems; 89/336/EEC EMC Directive; 2006/95/EC (Low Voltage); DIN41773 (Charging cycle); Emission : IEC 61000-6-4; Immunity: IEC 61000-6-2. CE


Altech CB Line Battery Charger

Power Supplies PRODUCT SERIES selection chart
make a choice below

12VDC Single Phase DIN Rail All In One UPS Power Solution
Cat. No. Size Input Output* Recovery Charge Trickle Charge Boost Charge
    VAC VDC A VDC VDC VDC
CBI123A 1 115-230-277 12 3 2-9 13.75 14.4
CBI126A 1 115-230-277 12 6 2-9 13.75 14.4
CBI1210A 1 115-230-277 12 10 2-9 13.75 14.4
CBI1235A 3 115-230-277 12 35 2-9 13.75 14.4
*= Output Current can be adjusted from 20%-100% of value given above


24VDC Single Phase DIN Rail All In One UPS Power Solution
Cat. No. Size Input Output* Recovery Charge Trickle Charge Boost Charge
    VAC VDC A VDC VDC VDC
CBI243A 1 115-230-277 24 3 2-16 27.5 28.8
CBI245A 1 115-230-277 24 5 2-16 27.5 28.8
CBI2410A 2 115-230-277 24 10 2-16 27.5 28.8
CBI2420A 3 115-230-277 24 20 2-16 27.5 28.8
*= Output Current can be adjusted from 20%-100% of value given above


48VDC Single Phase DIN Rail All In One UPS Power Solution
Cat. No. Size Input Output* Recovery Charge Trickle Charge Boost Charge
    VAC VDC A VDC VDC VDC
CBI485A 2 115-230-277 48 5 2-24 55 57.6
CBI4810A 3 115-230-277 48 10 2-24 55 57.6
*= Output Current can be adjusted from 20%-100% of value given above
