Industrial Enclosure Selection Page

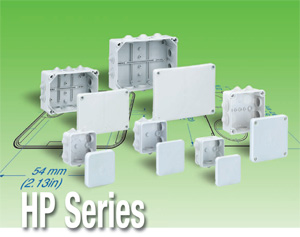

HP Series

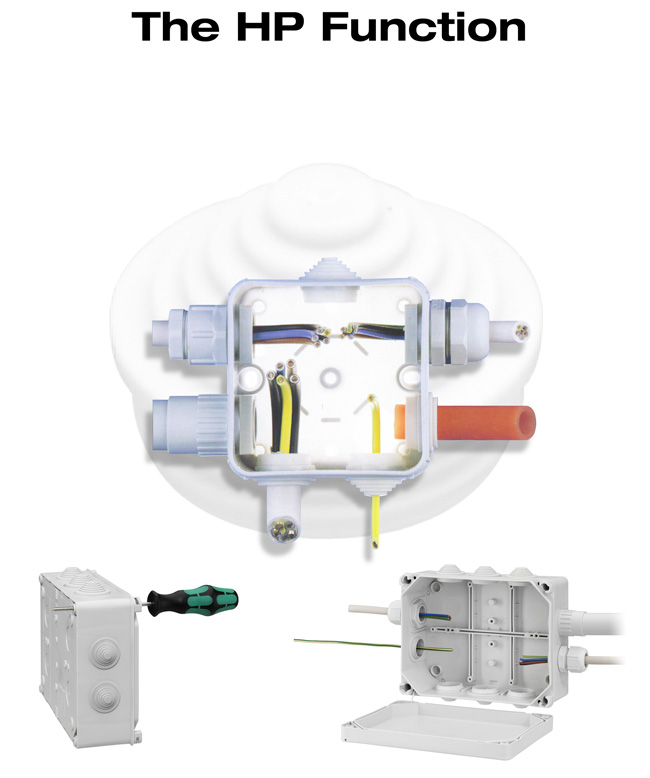

The HP Series are economy junction boxes for lighter duty applications. The HP70, 80 and 90 feature snap on covers, while the HP100 features 4 quick release screws. HP Enclosures are supplied with universal entry seals that can be easily cut to create the required wire, cable or conduit adapter opening. These universal entry seals provide protection up to IP54.

  • Direct mount
  • Semi rigid polypropylene
  • Dust and splash proof
  • Contact labyrinth seal
  • Temperature range up to 100°C (212°F)
  • IP54 protection
  • Universal entry seals
  • Standard rear knockouts
  • Corrosion and maintenance free
  • Non-flammable
  • Low halogen
  • Drainage possibilities for condensed water by drainage inlets
  • Metric inlets on all sides
Drawing and Data Files (If files do not automatically open, save to disk and than open.)

HP 70 – Polypropylene – 75 x 75 mm (2.95 x 2.95 in.)
DWG PDF Specification pages
HP 80 – Polypropylene – 85 x 85 mm (3.35 x 3.35 in.)
DWG PDF Specification pages
HP 90 – Polypropylene – 90 x 90 mm (3.54 x 3.54 in.)
DWG PDF Specification pages
HP 100 – Polypropylene – 113 x 113 mm (4.45 x 4.45 in.)
DWG PDF Specification pages
HP 150 – Polypropylene – 164 x 119 mm (6.46 x 4.69 in.)
DWG PDF Specification pages
HP 190 – Polypropylene – 199 x 149 mm (7.83 x 5.87 in.)
DWG PDF Specification pages
Altech TG Enclosures

For more information contact Altech at:
908-806-9400 • 908-806-9490 (FAX) • info@altechcorp.com • 35 Royal Road, Flemington, NJ 08822
