Industrial Enclosure Selection Page

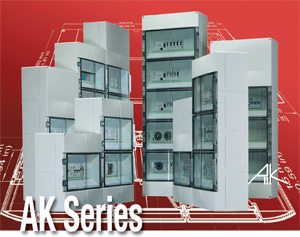

AK Series

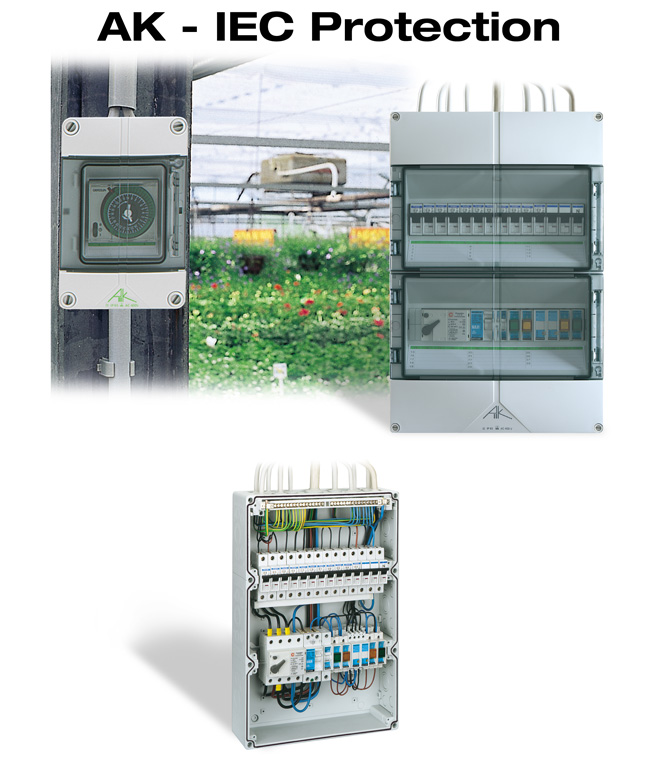

The AK Series are small to large enclosures designed to house and protect standard IEC components, such as DIN rail mount circuit breakers, switches, meters and other control devices. Larger than the EK Series, they offer increased capacity for mounting components and provide additional space for more convenient wiring.

The unique cover design features a shrouded cut out and transparent hinged doors for quick access and visibility. The shrouded cut out, spanning the width of the cover, exposes mounted components for easy adjustment while isolating wiring for increased safety. Doors have push release latches with reversible hinge feature to open from the left or right side. Keylocks can be added to the doors for increased security. Each enclosure is supplied with removable terminal strip assemblies for ground / neutral distribution and DIN rails.

Equipped with pre-installed entry plugs, these enclosures provide IP65 protection. Use of appropriate sealing connector assemblies for wire, cable or conduit entry can maintain IP65 protection. Using the entry spouts provided, enclosures have IP54 protection.

  • Direct mount
  • Corrosion and maintenance free
  • Small to large size
  • Polystyrene or Polycarbonate base and cover
  • Polycarbonate transparent doors
  • Integral seals
  • High mechanical strength
  • Dust and moisture proof
  • Halogen free
  • Up to IP65 protection
Drawing and Data Files (If files do not automatically open, save to disk and than open.)

AK 03 – Polystyrene and Polycarbonate - 100 x 150 mm (3.94 x 5.91 in.)
DWG PDF Specification pages
AK 05 – Polystyrene and Polycarbonate - 125 x 200 mm (4.92 x 7.87 in.)
DWG PDF Specification pages
AK 09 –– Polystyrene and Polycarbonate - 200 x 200 mm (7.87 x 7.87 in.)
DWG PDF Specification pages
AK 12 – Polystyrene and Polycarbonate - 250 x 200 mm (9.84 x 7.87 in.)
DWG PDF Specification pages
AK 14 – Polystyrene and Polycarbonate – 300 x 300 mm (11.81 x 11.81 in.)
DWG PDF Specification pages
AK 14+1 – Polystyrene and Polycarbonate – 450 x 300 mm (17.72 x 11.81 in.)
DWG PDF Specification pages
AK 28 – Polystyrene and Polycarbonate – 450 x 300 mm (17.72 x 11.81 in.)
DWG PDF Specification pages
AK 28+1 – Polystyrene and Polycarbonate – 600 x 300 mm (23.62 x 11.81 in.)
DWG PDF Specification pages
AK 42 – Polystyrene and Polycarbonate – 600 x 300 mm (23.62 x 11.81 in.)
DWG PDF Specification pages
AK 42+1 – Polystyrene and Polycarbonate – 750 x 300 mm (29.53 x 11.81 in.)
DWG PDF Specification pages
AK 56 – Polystyrene and Polycarbonate – 750 x 300 mm (29.53 x 11.81 in.)
DWG PDF Specification pages
AK 56+1 – Polystyrene and Polycarbonate – 900 x 300 mm (35.43 x 11.81 in.)
DWG PDF Specification pages
AK 70 – Polystyrene and Polycarbonate – 900 x 300 mm (35.43 x 11.81 in.)
DWG PDF Specification pages
