Industrial Enclosure Selection Page

Abox Series

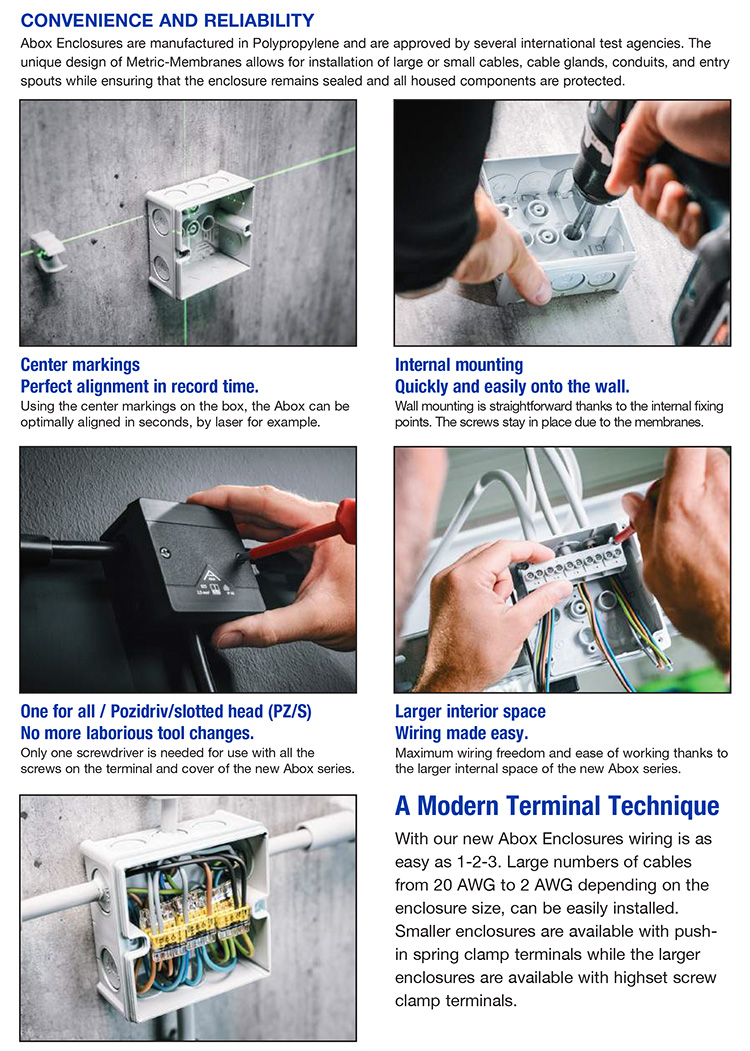

The Abox family consists of six enclosures that feature an attractive modern design and shape that allow for optimum use of installation space. Each enclosure has either membranes or knockouts on each sidewall and on the backside.

Two of the six enclosures in this family feature "Dual Molding Technology". This feature incorporates rubber membranes molded right into the polystyrene body. This allows the user to simply push wires through the membrane or cut them out to install a cable gland. These access holes can accommodate metric cable glands and entry spouts.

Abox Enclosures are available in sizes ranging from 80x80x52 mm (3.15x3.15x2.05 in.) to 250x250x115 mm (9.84x9.84x4.53 in.).

Most enclosures in the family can maintain IP65 protection with the use of complementary IP65 cable glands. The dual membrane models are IP65, without the addition of cable glands.

  • Two to four high grade self taping screws secure the lid
  • Tongue and groove sealing system with polyurethane gasket
  • Made from non-flammable Polystyrene
Drawing and Data Files (If files do not automatically open, save to disk and than open.)

Abox 025 – Polystyrene – 80 x 80 mm (3.15 x 3.15 in.)
3D STEP DWG PDF 3D PDF Specification pages
Abox 025AB – Polystyrene – 80 x 80 mm (3.15 x 3.15 in.)
3D STEP DWG PDF 3D PDF Specification pages
Abox 040 – Polystyrene – 93 x 93 mm (3.66 x 3.66 in.)
3D STEP DWG PDF 3D PDF Specification pages
Abox 060 – Polystyrene – 110 x 110 mm (4.33 x 4.33 in.)
3D STEP DWG PDF 3D PDF Specification pages
Abox 100 – Polystyrene – 140 x 140 mm (5.51 x 5.51 in.)
3D STEP DWG PDF 3D PDF Specification pages
Abox 160 – Polystyrene – 180 x 180mm (7.09 x 7.09 in.)
3D STEP DWG PDF 3D PDF Specification pages
Abox 350 – Polystyrene – 250 x 250 mm (9.84 x 9.84 in.)
3D STEP DWG PDF 3D PDF Specification pages
