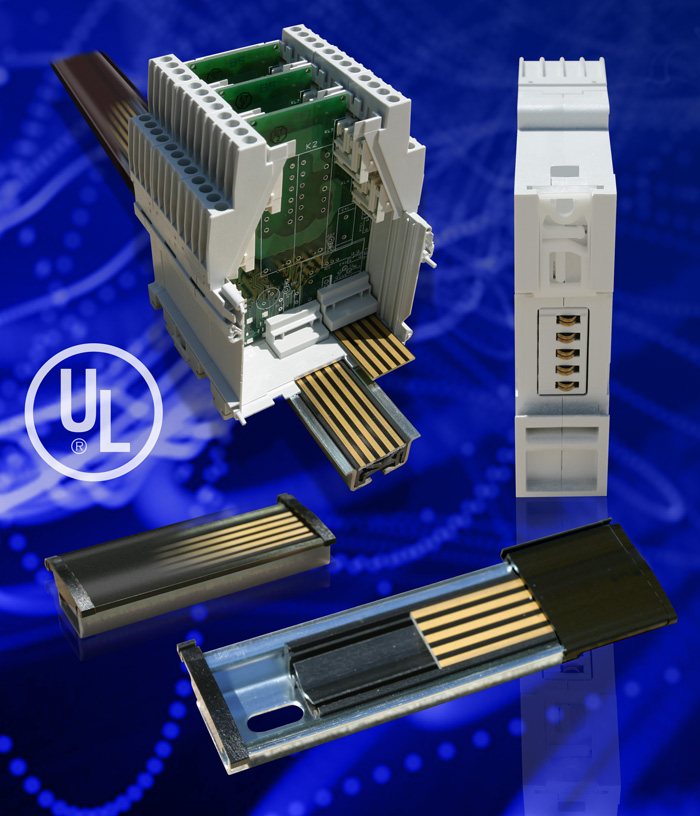

In-Rail Bus
    • DIN Rail Mount
    • Universal Bus system useable with most DIN enclosure types*
    • 5 Bus lines per Bus PCB
    • 5A per bus, 25A max per PCB rail
    • Quick and easy mounting in the DIN rail
    • Gold plated contact surfaces
    • Contact block springs with double contacts
    • High spring force on the contact springs
    • Max temperature 70°C
    • Can be used for internal busing
    • Standard DIN profiles, 7.5mm and 15mm
    • UL approval
    • 1 meter piece components can be cut to suitable lengths

* Enclosures must be miled to accept contact block.

Ordering Information
Part Number Description
91.905 Carrier Profile for 7.5mm DIN Rail, 1 meter length
91.915 Carrier Profile for 15mm DIN Rail, 1 meter length
91.925 BUS PCB, 1 meter length
91.935 Carrier-rail Cover, 1 meter length
91.945 Safety Cap – Right
91.946 Safety Cap – Left
91.955 Spring Contact Block
2511120/1M TS35x7.5mm DIN Rail, slotted, 1 meter length
CA701-15/S TS35x15mm DIN Rail, slotted, 1 meter length
