Circuit Protection Selection Page

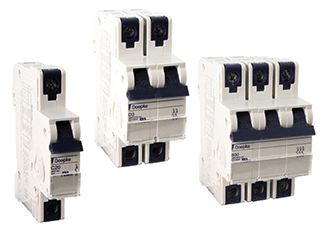

UR Series
UL1077 Recognized Supplementary Protector
  • DIN Rail Mounted
  • 17.5mm width per pole
  • Thermal Magnetic

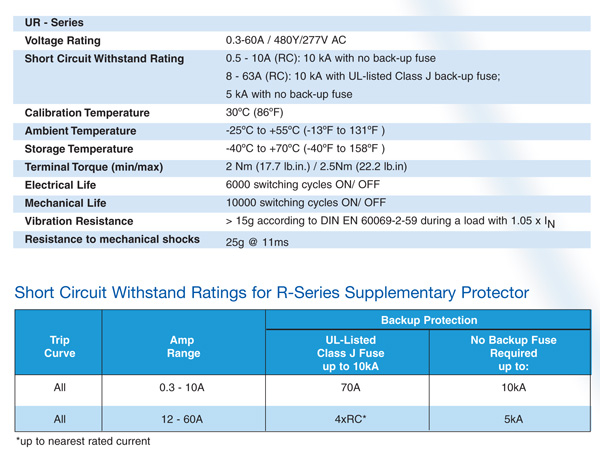

  • 0.3-60A / 480Y/277V AC, 50/60Hz
  • 10kA Short Circuit
    Withstand Capacity
  • Applications (on the load side
    of Branch Circuit Protection)
    include: Sensitive Electronics,
    Power Supplies, Appliance
    circuits, etc.
Altech L Series Circuit Breakers
Altech L Series Circuit Breakers

Single Page PDF Data Sheets


1 Pole 2 Pole 3 Pole
UL1077

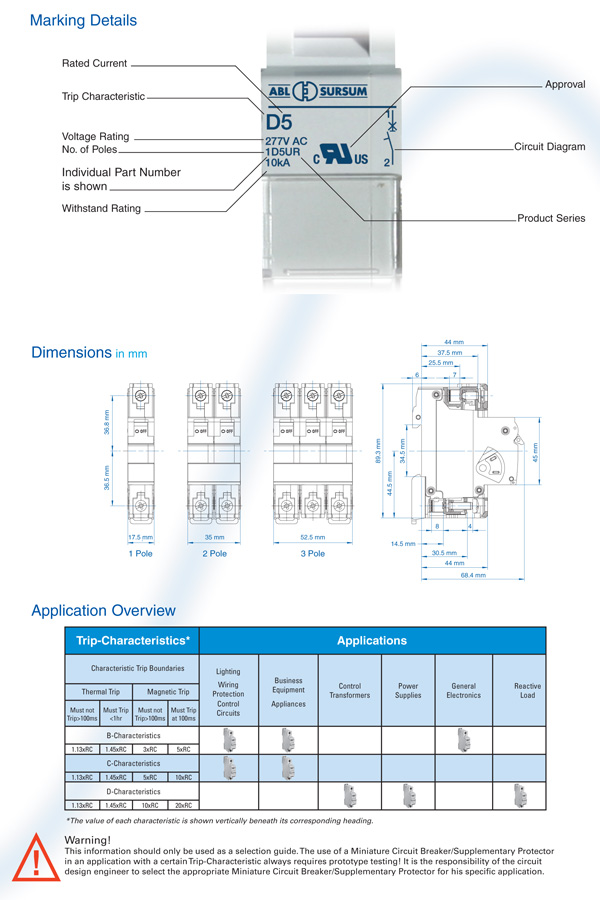

Drawing Files


1 Pole 2 Pole 3 Pole
UL1077

1st - Right click and save target file to your computer.
2nd - Open with your CAD application.
