Circuit Protection Selection Page

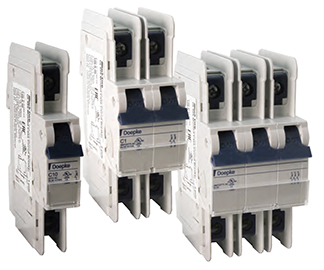

DL(DC) Series

UL489 Miniature Molded Case Circuit Breakers
  • Available in AC and DC models
  • DIN Rail Mounted
  • 17.5mm width
  • Thermal Magnetic
  • Current Limiting
  • 240V, 480Y/277V AC, 50/60Hz
  • 125V DC (1 pole); 250V DC (2pole)

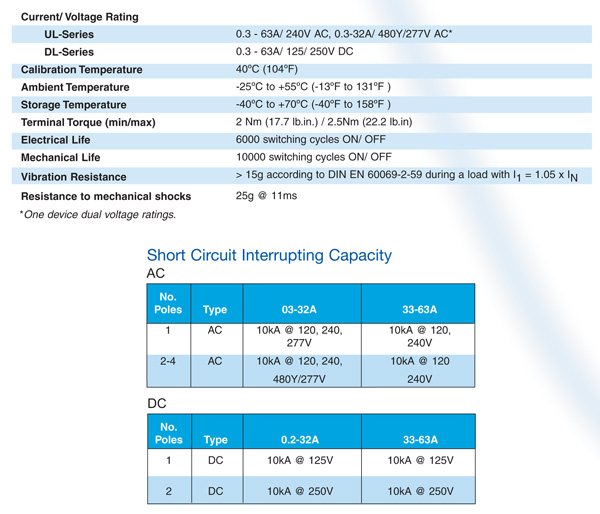

  • 10kA Short Circuit
    Interrupting Capacity
  • HACR Type 40°C
  • Line/Load reversible
Current Limiting
Altech L Series Circuit Breakers
Altech L Series Circuit Breakers

Single Page PDF Data Sheets

1 Pole 2 Pole 3 Pole

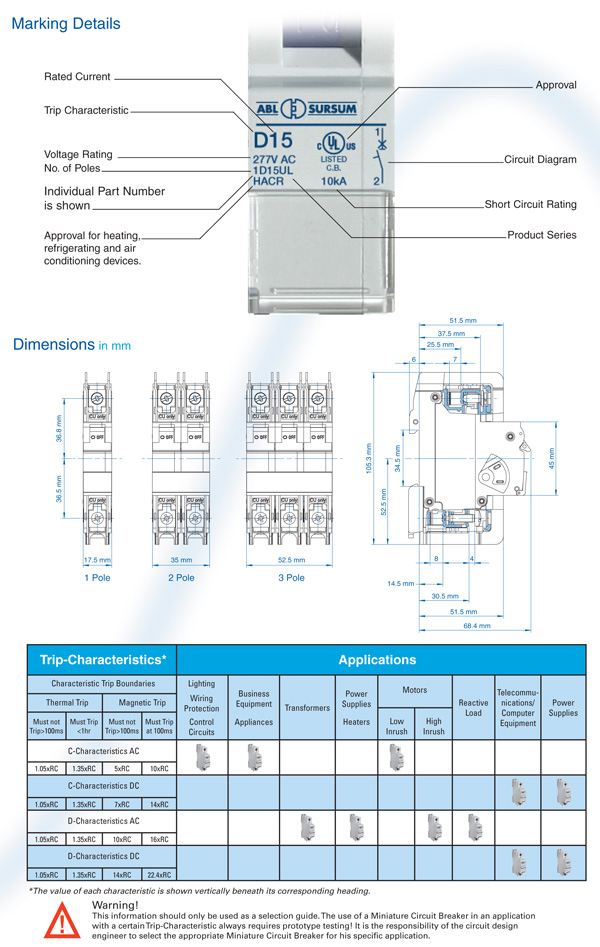

Drawing Files

1 Pole 2 Pole 3 Pole

1st - Right click and save target file to your computer.
2nd - Open with your CAD application.

White Paper
DC Wiring White Paper UL489 ABL DL Series
