Circuit Protection Selection Page

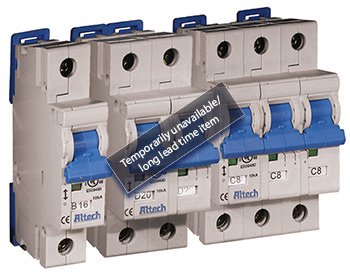

R Series
UL1077 Recognized Supplementary Protectors
  • DIN Rail Mounted
  • 17.5mm width per pole
  • Thermal Magnetic
  • 480Y/277V AC, 50/60Hz
  • 10kA Short Circuit
    Withstand Capacity
  • Positive Trip indicator
    (Green - off/tripped, Red - on)
  • Applications (on the load side
    of Branch Circuit Protection)
    include: Sensitive Electronics,
    Power Supplies, Appliance
    circuits, etc.
Altech L Series Circuit Breakers
Altech L Series Circuit Breakers

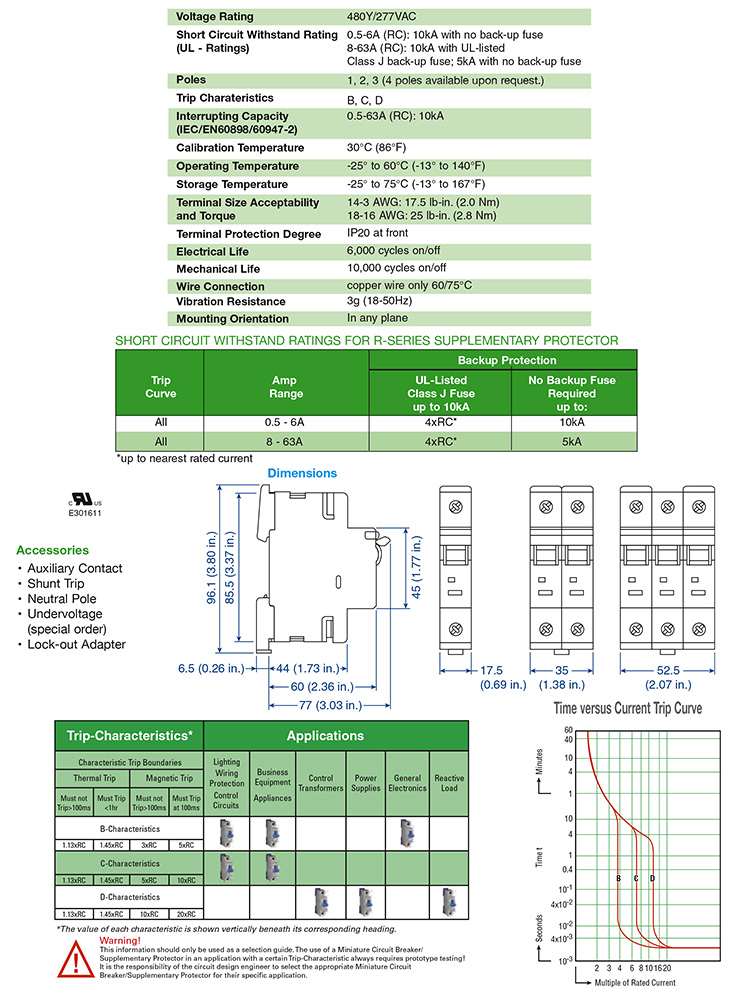

Single Page PDF Data Sheets


1 Pole 2 Pole 3 Pole
UL1077
click here for the older model UL508 data sheets

Drawing Files


1 Pole 2 Pole 3 Pole
UL1077

1st - Right click and save target file to your computer.
2nd - Open with your CAD application.
