Circuit Protection Selection Page

L Series
UL 489 Miniature Molded Case Circuit Breakers
  • Available in AC and DC models
  • DIN Rail Mounted
  • 17.5mm width
  • Thermal Magnetic
  • 240V, 480Y/277V AC, 50/60Hz
  • 125VDC (1 pole); 250VDC (2pole)
  • 10kA Short Circuit
    Interrupting Capacity
  • Positive Trip indicator
    (Green - off/tripped, Red - on)
  • HACR Type 40°C
  • Line/Load reversible

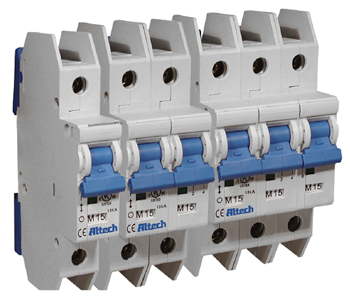

Altech L Series Circuit Breakers
Altech L Series Circuit Breakers

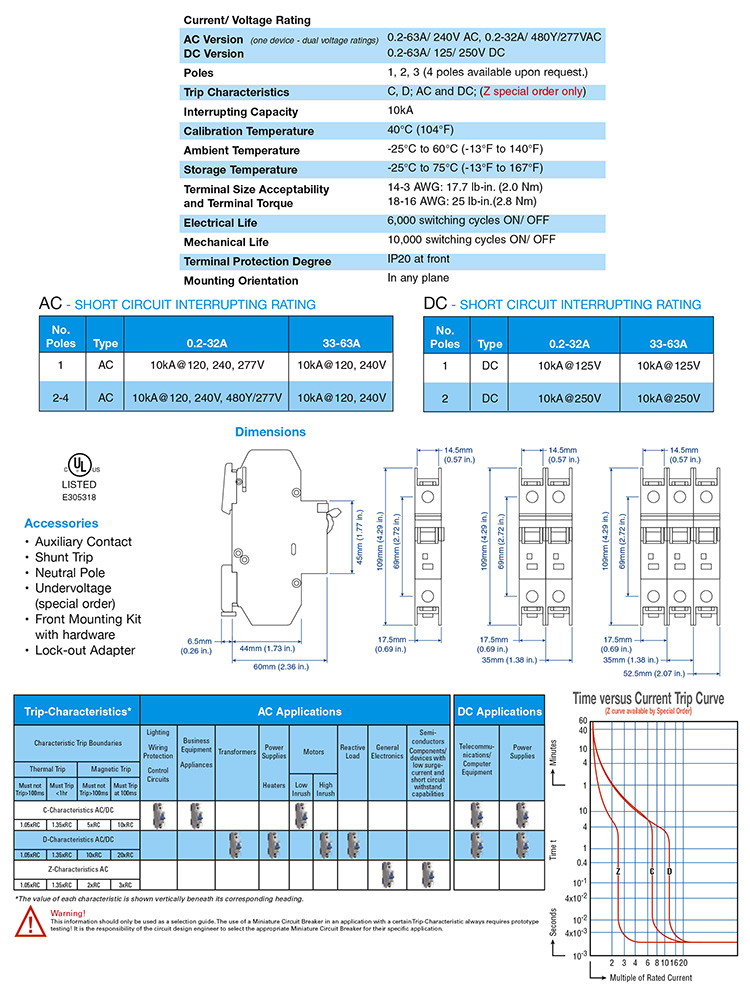

Single Page PDF Data Sheets


1 Pole 2 Pole 3 Pole
UL489
click here for the older model UL508 data sheets

Drawing Files


1 Pole 2 Pole 3 Pole
UL489


1st - Right click and save target file to your computer.
2nd - Open with your CAD application.


White Paper
DC Wiring White Paper of Altech DC Series


UL Certificate of Compliance.

CE Marking Declaration:

Altech CE Letter 489 (AC and DC)




For more information contact Altech at:
908-806-9400 • 908-806-9490 (FAX) • info@altechcorp.com • 35 Royal Road, Flemington, NJ 08822
