Rope Pull Switches
For Safety and Initiation Applications

Momentary and Latching

Altech Switch Catalog

TYPES

  • Keyed Safety Switches
  • Solenoid Locking Safety Switches
  • Hinged Safety Switches
  • Non-Contact Safety Switches
  • Safety Rope Pull Switches
  • Standard Rope Pull Switches
  • Double Sided Rope Pull Switches
  • Safety Relays

For other Safety Products click below:

Rope Pull Switch Video


M49

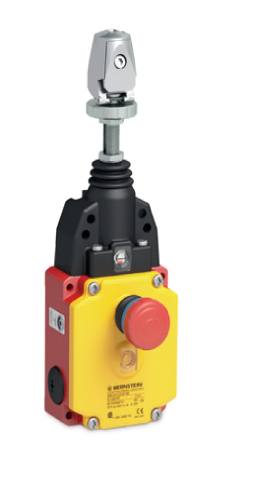

SRM Metal Body
Latching Style with Reset Button
Optional Emergency Stop Button

  • Rope pull switch manufactured in accordance with IEC 60947-5-5 and ISO 13850
  • Protection class IP67• Stable and durable metal housing (Aluminium pressure die-casting)
  • Suitable for outdoor use
  • Can be deployed at temperatures between –30 °C and +80 °C
  • Easy to fasten due to hole template patterns common for most rope pull switch models
  • Flexible handling with three M20 x 1.5 cable entries
  • Easy installation due to the maximum connection space
  • Up to four positively driven NC contacts
  • Separate-action built-in switches
  • AS-i Safety at Work versions available

Click to download this catalog section

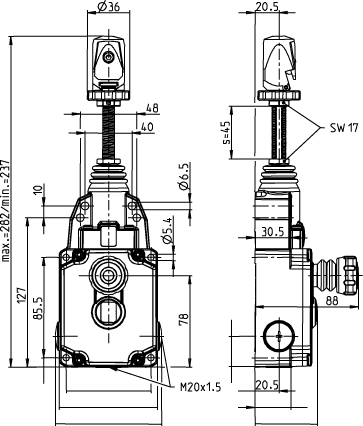

M49 drawing
GC

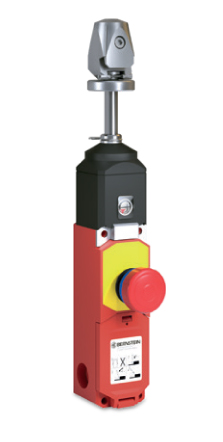

SR Plastic Body
Latching Style with Reset Button
Optional Emergency Stop Button

  • Rope pull switch manufactured in accordance with IEC 60947-5-5 and ISO 13850
  • Protection class IP67
  • Stable and durable plastic housing (PA 6 GV)• Can be deployed at temperatures between –25 °C and +70 °C
  • Flexible handling with three M20 x 1.5 cable entries• Easy installation due to the maximum connection space
  • Up to four positively driven NC contacts

Click to download this catalog section

GC drawing
MN78

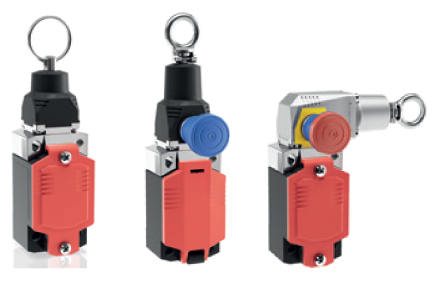

SRO Rope Pull Switches
Momentary or Latching Style
Plastic or Metal Body

  • As metal or thermoplastic variant – or as a combination of both
  • Compact design for confined spaces
  • Emergency stop button upon request
  • Max. rope length of 30 m
  • up to 4 contacts
  • Ambient temperature: –30° to +75 °C

Click to download this catalog section

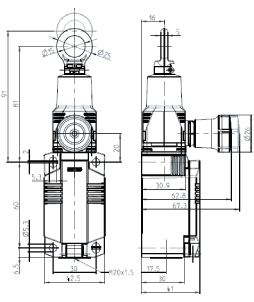

MN78 drawing
SN2

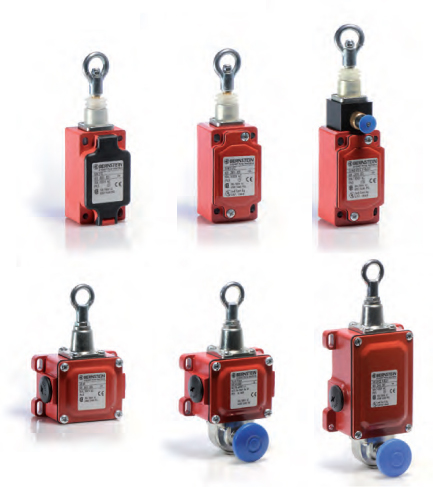

Standard Rope Pull Switches

  • Because of their specifications governed by corresponding standards (see Cable Safety Pull Switches SRM/SR), these cable pull switches are used exclusively as command devices.
  • These switches are available in metal enclosures as well as in insulationenclosed versions. They are operated manually by pulling on the attached cable.
  • Thanks to their pretension, these switches, which feature a switching contact with overlap, execute a switching function when the cable is pulled or in the event of cable breakage.

Click to download this catalog section

SN2 drawing

Double Sided Rope Pull Switches

  • Bernstein double-spanned rope pull switches (Si1 and Si2) are also used in emergency stop applications.
  • When the cable is pulled the switching lever is deflected in the corresponding direction and the system shut down.

Click to download this catalog section

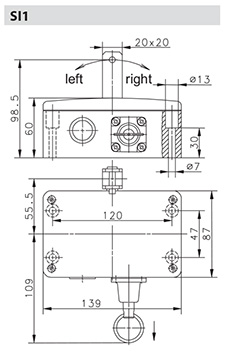

double rope pull drawing
SN2

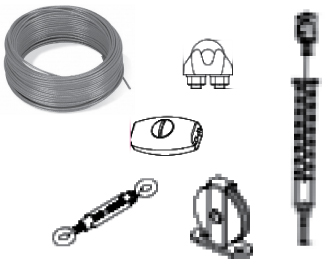

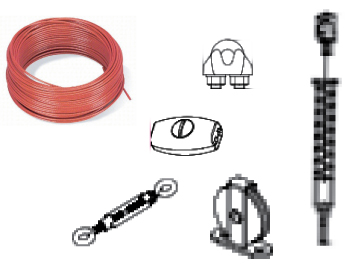

Rope Pull Accessories

  • Safety Rope (sold byt the meter)
  • Connectors, thimbles, eyebolts and nuts
  • Turnbuckles and pulleys
  • Quickfix and standard springs

Click to download this catalog section

SN2 drawing


For more information contact Altech at:
908-806-9400 • 908-806-9490 (FAX) • info@altechcorp.com • 35 Royal Road, Flemington, NJ 08822
