Corrugated Tubes
& Tube Connectors

Click here online catalog.

Protect your cables with corrugated tubes. Made from flame retardant Polyamide 6, these tubes will protect cables from impact and abrasion. They are highly flexible and have a high fatigue life, making them ideal for any installation. 18 sizes are available in standard tube or with a lateral slit. Add straight or 90° connectors with seals to complete the installation.


Material: Polyamide 6
Accessories:
Flame retardant according to DIN 75200 and UL
Connectors
No halogen
Seal Rings, O-Rings
Durable
Mounting Clips
Temperature Range: -40 to 120°C, short term 150°C
Inner Dimensions: 2.8mm up to 47.7mm

tubbing chart 1

Available sizes (in mm):
3, 4.5, 6, 7.5, 8.5, 10, 11, 12, 13, 14, 15, 16, 17, 19, 22, 23, 26, 29, 34, 37, 50, 70, 95

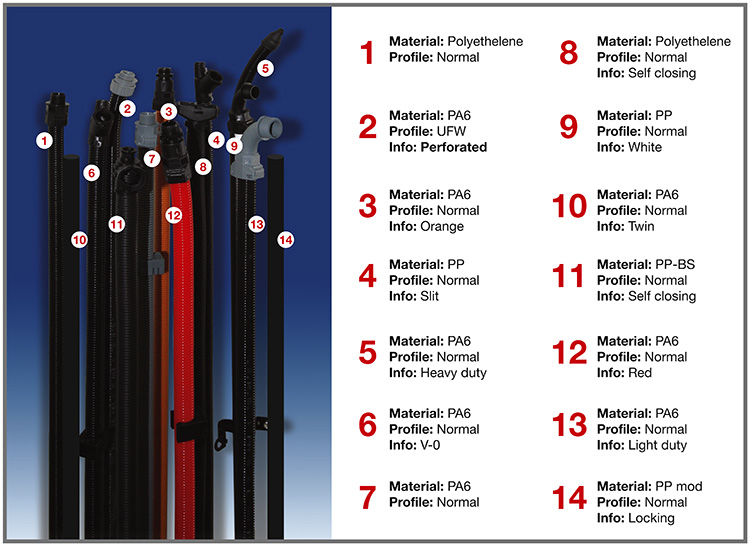

tubing chart 2

POLYFLEX®, PA 6 normal profile conduit

Material:

  • Polyamide 6

Upper temperature range:

  • Short-term: 150°C, (302°F)

Characteristics:

  • Parallel corrugated
  • Gray available

Technical properties:

  • Flame retardant according to FMVSS302 and UL94
  • Halogen free
  • Durable
  • UV resistant according to DIN EN ISO 8580

Applications:

  • Engine compartment, car body and interior, machines, instruments, devices, ship and train building, switch cabinet and movable machine parts.
Conduit Gland SEM Straight, quick-mounting system for Polyflex PA 6 conduit

Material:

  • Polyamide 66

Technical properties:

  • Easy and tight mounting
  • Special click- in system
  • Grasps from the outside
  • Gray available
  • Conduit can be rotated within the mounting gland
  • Halogen free

Applications:

  • All fields using conduit

Mounting instructions:

  • Insert the conduit with a short twist all the way into the end of the SEM conduit gland.
Conduit Gland SEM/W-angled 90°, quick-mounting system for Polyflex PA 6 conduit

Material:

  • Polyamide 66

Technical properties:

  • Easy and tight mounting
  • Special click- in system
  • Grasps from the outside
  • Gray available
  • Conduit can be rotated within the mounting gland
  • Halogen free

Applications:

  • All fields using conduit

Mounting instructions:

  • Insert the conduit with a short twist all the way into the end of the SEM conduit gland.
O-Ring for Corrugated Tubes and Clamping Clips

Material:

  • Perbunan

Characteristic feature:

  • Shore: 70 ± 5

Feature:

  • The O-ring must be mounted into the first groove of the conduit
  • The conduit, with its pre-mounted sealing ring, must be inserted into the SEM gland and simply twisted into the end.
Clamping clip for conduit tubes

Material:

  • Polyamide

Color:

  • Black
