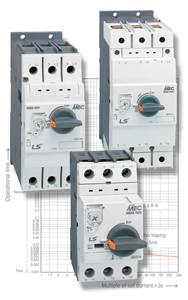

Manual Motor Starters - MMS Series

• Standards and Certifications
  • UL508 (Manual Motor Controller)
  • UL508 (Type E self-protected Manual Motor Controller)
  • CSA C22.2 NO.14
  • IEC 60947-2 & IEC 60947-4-2
• Features
  • DIN Rail and Screw Mounting
  • Lockable Handle in OFF position
  • Finger safe terminals
  • Class 10 thermal Overload protection
  • Trip test feature • Phase failure protection
  • Adjustable thermal release
  • Type F combination Manual Motor Controller (with MC-Series Contactor)
  • Wide range of common accessories:
    • Auxiliary Contacts
    • Alarm Switch
    • Undervoltage/ Shunt Release
    • Rotary Handle
    • Busbar
    • MC-Series Mounting Adaptor
• General Specifications
  • Maximum Voltage: 600V AC
  • Short Circuit Current Rating (SCCR): up to 65kA@480VAC
  • Rated Frequency: 50/60Hz
  • Max Operating Frequency: 25 operations/hour
  • Operating Temperature: -20°C (-4°F) to +60°C (140°F)
  • Storage Temperature: -50°C (-58°F) to +80°C (176°F)
  • Degree of protection: IP20
  • Resistance to Shock: 25g
  • Resistance to Vibration: 5 - 150Hz
