PROMOTING OPTIMIZED SEALING AND REDUCED COMPONENT STRESS:

ALTECH® ATEX STRAIN RELIEFS FOR CABLE ENTRIES

PROVIDE INCREASED SAFETY IN POTENTIALLY EXPLOSIVE AREAS

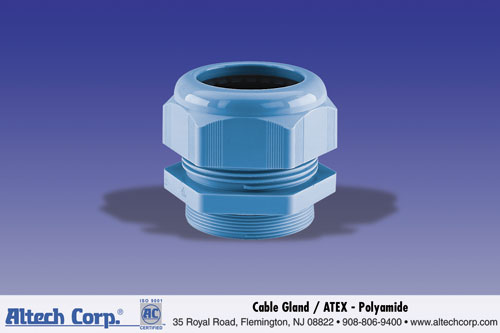

Altech® ATEX polyamide strain reliefs for cable entries provide increased safety in explosion-endangered areas by eliminating any potential for arcs, sparks, or hot surfaces.  These IP68-rated strain reliefs with neoprene seals promote optimized sealing and protection against contaminants and additionally reduce stress on components and terminal points in machine and device applications across industries.

Altech ATEX polyamide strain reliefs are available with NPT threads (3/8” to 1”) or metric threads (M12 to M63).  The trapezoidal threads contribute high torque for a tight and permanent fit of the dome nut.  Wide clamping ranges (from 2.5-6.5mm to 35-48mm, depending on type) ensure maximum strain relief in service.

Mounting is accomplished easily using a flat seal and metal locknut.  Upon installation, the strain reliefs offer ideal gas- and water-tight solutions with the capability to perform over a broad temperature range (from -20ºC to 60ºC and -4ºF to 140ºF).

Custom products, including strain reliefs with extended threads, can be developed to satisfy particular application requirements.

Click here to go to more information and catalog.

Contact Dan Schuster, Altech Corp.®, 35 Royal Road, Flemington, NJ 08822-6000 USA.  Phone: 908-806-9400; Fax: 908-806-9490.  Email: info@altechcorp.com
